Analisis Perilaku Portal 3 Dimensi pada Leg System Tipe Jacket terrhadap Beban Vertikal Menggunakan Metode Elemen hingga dengan SAP2000 3D Portal Analysis on Jacket Structure
Article Sidebar
Main Article Content
Abstract

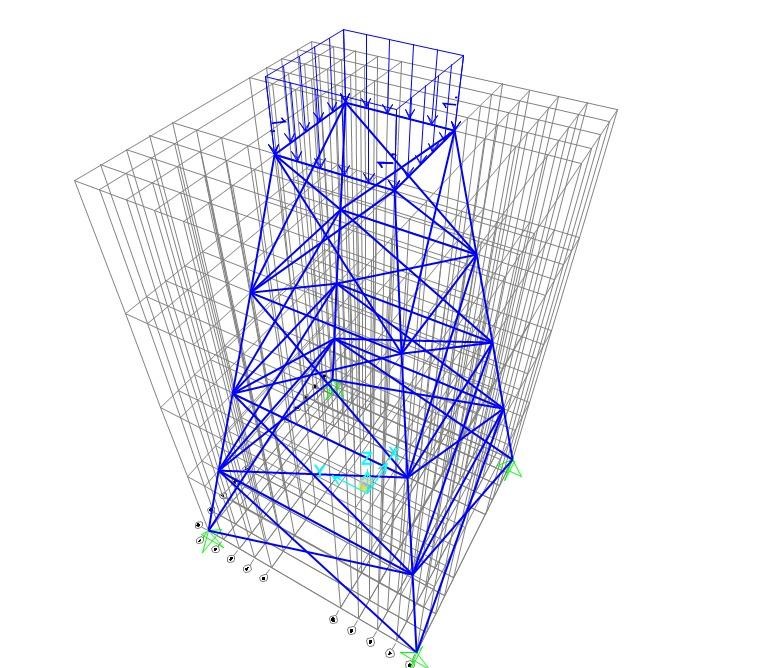

Jacket structures are a type of three-dimensional frame structure that is widely used in offshore structures to support vertical and lateral loads. Studies on the basic response of leg systems to pure vertical loads are important as a preliminary step before analyzing more complex environmental loads. This study aims to analyze the behavior of a three-dimensional portal structure on a jacket-type leg system using the SAP2000 finite element method. Modeling was performed on a 4-leg structure with diagonal and horizontal bracing using ASTM A992 steel cylindrical cross-sections. Vertical loads in the form of four concentrated loads of 1 kN each were applied to the top brace. The simulation results show a maximum displacement of Uz = 0.560 m, while the maximum lateral displacement is Ux/ Uy = 0.245 m. The maximum axial compressive force on the leg is 1059.44 kN, while the maximum tensile force is 7.41 kN. The maximum stress reaches 620.75 MPa on the center brace due to the concentration of stiffness and local moments. The maximum torsion of 3.42 kNm occurs as a result of the asymmetry of stiffness between elements. This study provides a basic understanding of global deformation, internal force distribution, and critical points of the jacket structure due to pure vertical loads and can be used as a basis for more complex analyses.
Keywords: vertical load, structural deformation, FEM, jacket structure, SAP2000
Downloads
Article Details
References
American Petroleum Institute, API RP 2A-WSD: Planning, Designing and Constructing Fixed Offshore Platforms, 2007.
DNVGL, DNVGL-RP-C205: Environmental Conditions and Environmental Loads, 2017.
DNVGL, DNVGL-OS-C101: Design of Offshore Steel Structures, 2015.
R. D. Cook, D. S. Malkus, M. E. Plesha, and R. J. Witt, Concepts and Applications of Finite Element Analysis. Hoboken, NJ, USA: Wiley, 2001.
D. L. Logan, A First Course in the Finite Element Method. Boston, MA, USA: Cengage Learning, 2015.
Computers and Structures Inc., SAP2000 Analysis Reference Manual, 2017.
J. M. Gere and S. Timoshenko, Mechanics of Materials. Boston, MA, USA: PWS Publishing, 1997.
T. H. G. Megson, Structural and Stress Analysis. Oxford, U.K.: Butterworth-Heinemann, 2019.
F. P. Beer, E. R. Johnston, J. T. DeWolf, and D. Mazurek, Mechanics of Materials. New York, NY, USA: McGraw-Hill, 2011.
S. Chakrabarti, Handbook of Offshore Engineering. Amsterdam, Netherlands: Elsevier, 2005.
R. Bhattacharyya, Dynamics of Marine Structures. Hoboken, NJ, USA: Wiley, 2011.
W. McGuire, R. Gallagher, and R. D. Ziemian, Matrix Structural Analysis. New York, NY, USA: Wiley, 2000.
O. C. Zienkiewicz and R. L. Taylor, The Finite Element Method: Its Basis and Fundamentals. Oxford, U.K.: Butterworth-Heinemann, 2005.
J. N. Reddy, An Introduction to the Finite Element Method. New York, NY, USA: McGraw-Hill, 2006.
T. Moan and M. Shinozuka, Structural Reliability Theory and Its Applications. New York, NY, USA: Springer, 1988.
Y. Bai and Q. Bai, Subsea Engineering Handbook. Houston, TX, USA: Gulf Professional Publishing, 2010.
ISO, ISO 19902: Petroleum and Natural Gas Industries—Fixed Steel Offshore Structures, Geneva, Switzerland, 2007.
ABS, Guide for Building and Classing Floating Production Installations, Houston, TX, USA, 2018.
J. F. Wilson and E. F. K. Fjeld, Dynamic Response of Marine Structures. New York, NY, USA: Wiley, 1988.
B. S. Timoshenko and D. H. Young, Theory of Structures. New York, NY, USA: McGraw-Hill, 1965.
